Product Details:
|
| Product Number: | LQ121S1DG41 | C/R: | 450:1 |
|---|---|---|---|
| Resolution: | 800×600 | Brightness: | 370 |
| Backlight: | CCFL | Interface: | TTL |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

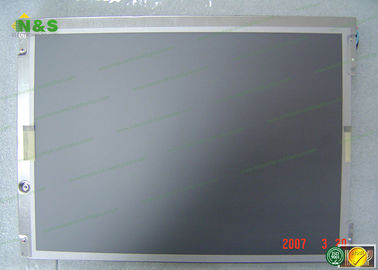

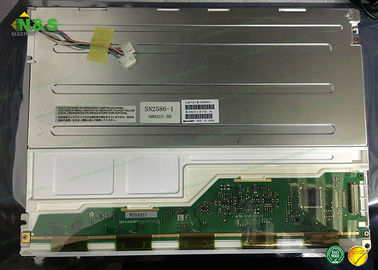

370 cd/m2 LCD Screen Display Panel LQ121S1DG41 12.1" 800*600
| Panel Brand : | SHARP |
| Panel Model : | LQ121S1DG41 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 276×209×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 370 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Panel Model | Size | Resolution | cd/m2 | C/R |
| NL8060BC31-42 | 12.1" | 800×600 | 400 | 600:1 |
| LB121S02-A2 | 12.1" | 800×600 | 300 | 200:1 |
| LTD121C31S | 12.1" | 800×600 | 250 | 450:1 |
| LQ121S1DG41 | 12.1" | 800×600 | 370 | 450:1 |
| NL8060BC31-17 | 12.1" | 800×600 | 350 | 350:1 |
| TM121SV-02L01 | 12.1" | 800×600 | 100 | 150:1 |
| LTA121B860F | 12.1" | 800×600 | 380 | 500:1 |
| NL8060BC31-27 | 12.1" | 800×600 | 400 | 600:1 |
| LB121S03-TD01 | 12.1" | 800×600 | 400 | 500:1 |
| LQ121S1DG11 | 12.1" | 800×600 | 250 | 300:1 |
What’s our advantage compared with other suppliers?

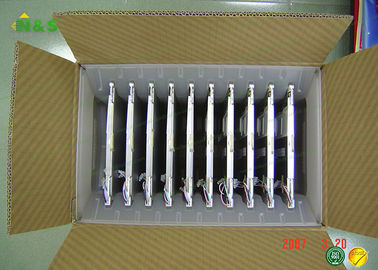

(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
