Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ108T1LY01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.8 Inch |
| Resolution: | 1366(RGB)×800 , WXGA | Display Mode: | ASV, Normally Black, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ108T1LY01 Sharp LCD Panel LCM 1366×800 250 800:1 16.7M WLED LVDS
LQ108T1LY01 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ108T1LY01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.8 inch |
| Resolution : | 1366(RGB)×800 , WXGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 237.7×139.2 mm |
| Outline : | 253.8×158.8×5.45 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 48% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 7S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
| LM32019P5R | SHARP | 5.7" | 320×240 |
| LM32004 | SHARP | 5.7" | 320×240 |
| LM80C209 | SHARP | 11.3" | 800×600 |
| Panel Size : | 10.8 inch |
| Dot Resolution : | 1366(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 145 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.058×0.174 mm (H×V) |
| Pixel Pitch : | 0.174×0.174 mm (H×V) |
| Weight : | 200/215g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 237.7×139.2 mm (H×V) |
| Outline Dimension : | 253.8×158.8 mm (H×V) |
| Outline Depth : | 5.45 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ2) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

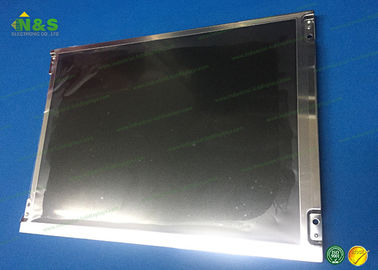

LQ108T1LY01 Picture
