Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ070T5GG02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
7.0 inch LQ070T5GG02 Sharp LCD Panel with 154.08×87.05 mm Active Area
LQ070T5GG02 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ070T5GG02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×87.05 mm |
| Outline : | 169.5×103.1 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | Full color |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/40 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | TFT Specific Analog RGB , 32 pins |
| Input Voltage : | 5/13/-10/-12/-17V (Typ.)(VSH/VGH/VGL/VCC/VSS) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.372 mm (H×V) |
| Pixel Pitch : | 0.321×0.372 mm (H×V) |
| Weight : | 230g (Max.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 154.08×87.05 mm (H×V) |
| Outline Dimension : | 169.5×103.1 mm (H×V) |
| Outline Depth : | 13.6 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

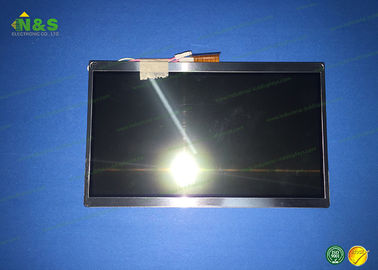

LQ070T5GG02 Picture
