Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ058T5GR02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.8 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ058T5GR02 5.8 inch Sharp LCD Panel with 127.2×71.8 mm
LQ058T5GR02 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ058T5GR02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.8 inch |
| Resolution : | 400(RGB)×234 |
| Display Mode : | TN, Transmissive |
| Active Area : | 127.2×71.8 mm |
| Outline : | 145×89.2 mm |
| Surface : | Antireflection |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | |
| Display Colors : | Full color |
| Response Time : | |
| Viewing Angle : | |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | TFT Specific Analog RGB |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Panel Size : | 5.8 inch |
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 80 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.106×0.307 mm (H×V) |
| Pixel Pitch : | 0.318×0.307 mm (H×V) |
| Weight : | 140g (Typ.) |
| Surface : | Antireflection |
| Active Area : | 127.2×71.8 mm (H×V) |
| Outline Dimension : | 145×89.2 mm (H×V) |
| Outline Depth : | 7.7 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

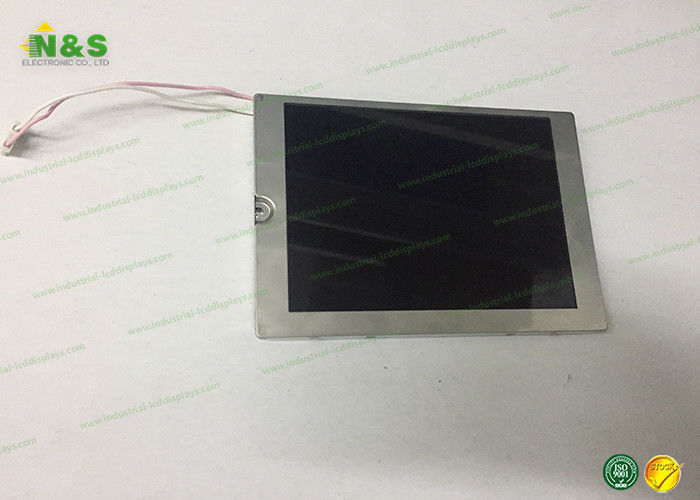

LQ058T5GR02 Picture
