Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ043T1DG03A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
| Resolution: | 480×272(RGB) , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
4.3 inch LQ043T1DG03A Sharp LCD Panel with 95.04×53.856 mm
LQ043T1DG03A Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ043T1DG03A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2×5.35 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC/AVDD) |
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 62g (Typ.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.7×57.5 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 5.05±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

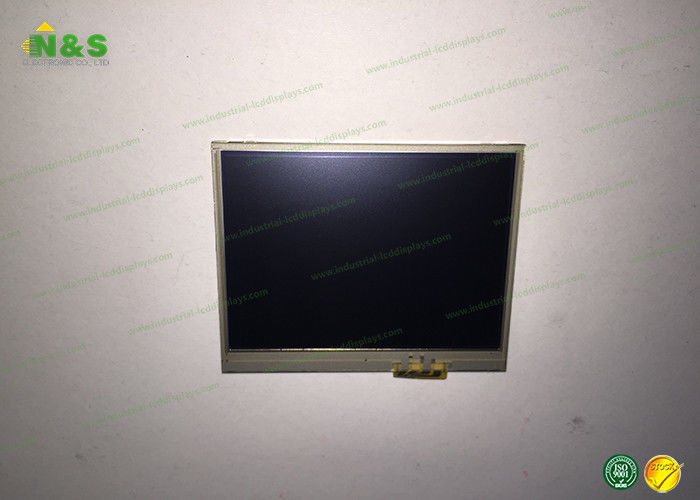

LQ043T1DG03A Picture
