Product Details:
|
| Panel Brand: | CHIMEI INNOLUX | Panel Model: | LW700AT6005 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | tft lcd display,innolux lcd screen |
||
Normally White 7.0 inch LW700AT6005 Innolux LCD Panel with 152.4×91.44 mm
LW700AT6005 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | LW700AT6005 |
| Panel Type : | a-Si TFT-LCD , CELL |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 160×102.3 mm |
| Surface : | Antiglare |
| Glass Depth : | 0.50+0.50 mm |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Outline Dimension : | 160×102.3 mm (H×V) |
| Outline Depth : | 1.43 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

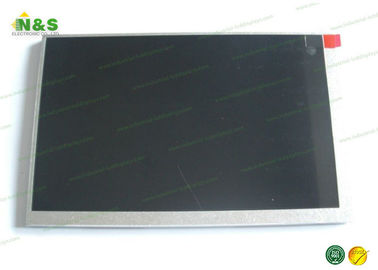

LW700AT6005 Picture
