Product Details:
|
| Panel Size: | 5.5 Inch | Resolution: | 1080(RGB)×1920 (FHD) |
|---|---|---|---|
| Display Mode: | Normally Black, Transmissive | Signal Interface: | MIPI (4 Data Lanes) , 30 Pins |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
| Panel Size : | 5.5 inch |
| Dot Resolution : | 1080(RGB)×1920 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 397 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0213×0.0639 mm (H×V) |
| Pixel Pitch : | 0.0639×0.0639 mm (H×V) |
| Weight : | 25g (Typ.) |
| Surface : | Clear |
| Active Area : | 69.012×122.688 mm (H×V) |
| Bezel Area : | 70.01×123.688 mm (H×V) |
| Outline Dimension : | 71.72×130.4 mm (H×V) |
| Outline Depth : | 1.66±0.15 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | Normally Black, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.290; Wy:0.310 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

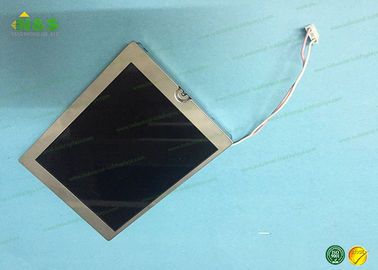

LS055T1SX01 Picture
