Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time: | 6/15 (Typ.)(Tr/Td) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| Highlight: | nec tft lcd,nec lcd screen |
||
NL10276BC12-02 NEC lcd flat panel hard coating surface 6.3 inch LCM 1024×768
NL10276BC12-02 Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276BC12-02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.3 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 129.024×96.768 mm |
| Outline : | 178.8×126.8 mm |
| Surface : | Antiglare, Hard coating (2H), Antireflection |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 6/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 6.3 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 201 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.042×0.126 mm (H×V) |
| Pixel Pitch : | 0.126×0.126 mm (H×V) |
| Weight : | 265/295g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H), Antireflection |
| Active Area : | 129.024×96.768 mm (H×V) |
| Bezel Area : | 133.8×101.4 mm (H×V) |
| Outline Dimension : | 178.8×126.8 mm (H×V) |
| Outline Depth : | 12.0±0.5 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
| ED060KC1 | E Ink | 6.0" | 1072×1448 |
| ED060XC9 | E Ink | 6.0" | 758×1024 |
| ED060XD7 | E Ink | 6.0" | 758×1024 |
| ED080TC1 | E Ink | 8.0" | 1600×1200 |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

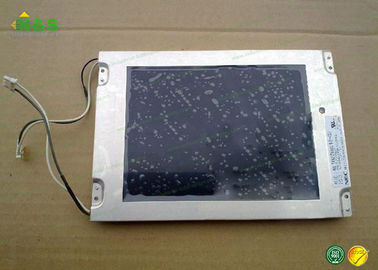

NL10276BC12-02 NEC LCD Panel Picture
