Product Details:
|
Active Area: | 304.128×228.096 Mm | Brightness: | 200 Cd/m² (Typ.) |
---|---|---|---|
Display Colors: | 262K (6-bit) , CIE1931 43% | Viewing Angle: | 55/55/45/45 (Typ.)(CR≥10) (L/R/U/D) |
High Light: | nec lcd touch screen,nec tft lcd |
NEC 15.0 inch NL10276AC30-04 LCD Panel with 304.128×228.096 mm Active Area
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
NL10276AC30-04 Detail
Panel Brand : | NEC |
Panel Model : | NL10276AC30-04 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 15.0 inch |
Resolution : | 1024(RGB)×768 , XGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 304.128×228.096 mm |
Outline : | 350×265×20.5 mm |
Surface : | Hard coating (3H), Antireflection |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 400:1 (Typ.) |
Display Colors : | 262K (6-bit) , CIE1931 43% |
Response Time : | 15/40 (Typ.)(Tr/Td) |
Viewing Angle : | 55/55/45/45 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
Input Voltage : | 5.0V (Typ.) |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
ED080XC2 | E Ink | 8.0" | 1024×768 |
PM049OX1 | E Ink | 4.9" | 266×600 |
PW100XU2 | E Ink | 10.0" | 640×468 |
PW090XUD | E Ink | 9.0" | 640×220 |
PW090XUC | E Ink | 9.0" | 640×220 |
PW090XUB | E Ink | 9.0" | 640×220 |
PW090XUA | E Ink | 9.0" | 640×220 |
PW090XU8 | E Ink | 9.0" | 640×220 |
PW090XU7 | E Ink | 9.0" | 640×220 |
Panel Size : | 15.0 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 85 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.099×0.297 mm (H×V) |
Pixel Pitch : | 0.297×0.297 mm (H×V) |
Weight : | 1.35/1.50Kgs (Typ./Max.) |
Surface : | Hard coating (3H), Antireflection |
Active Area : | 304.128×228.096 mm (H×V) |
Bezel Area : | 308.8×232.7 mm (H×V) |
Outline Dimension : | 350×265 mm (H×V) |
Outline Depth : | 20.0/20.5 (Typ./Max.) mm |
Holes & Brackets : | Face mounting holes (4-Φ3.5, 1-Φ3, 1-Φ3.1, 1-Φ4.5x3.1) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |

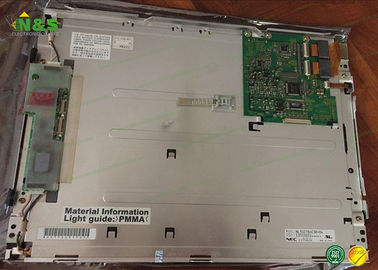

NL10276AC30-04 NEC LCD Panel Picture
