Product Details:
|
| Panel Size :: | 8.9 Inch | Resolution :: | 1024×600(RGB) , WSVGA |
|---|---|---|---|
| Outline :: | 213.36×129.55×5.45 Mm | Brightness :: | 200 Cd/m² (Typ.) |
| Display Colors :: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45% | Response Time :: | 16 (Typ.)(Tr+Td) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

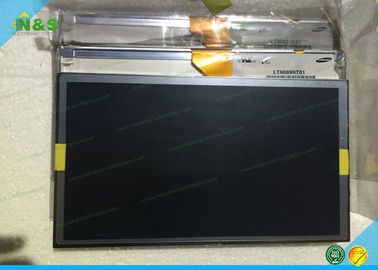

8.9 Inch LTN089NT01 industrial lcd screen 195.072×113.4 mm Active Area Normally White
LTN089NT01 Information
| Panel Size : | 8.9 inch |
|---|---|
| Dot Resolution : | 1024×600(RGB) (WSVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1905×0.0630 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1890 mm (H×V) |
| Weight : | 160/190g (Typ./Max.) |
| Active Area : | 195.072×113.4 mm (H×V) |
| Bezel Area : | 198.27×116.6 mm (H×V) |
| Outline Dimension : | 213.36×129.55 mm (H×V) |
| Outline Depth : | 5.15±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTN089NT01 Information
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 50/50/25/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
