Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Active Area: | 304.128×228.096 Mm | Outline: | 350×265×24 Mm |
| Brightness: | 180 Cd/m² (Typ.) | Signal Interface: | Analog RGB , 47 Pins |
| Highlight: | nec lcd touch screen,nec lcd screen |
||
NEC LCD Panel Hard coating NL10276AC30-01A 15.0 inch for Desktop Monitor
Product Information
| Panel Brand : | NEC |
| Panel Model : | NL10276AC30-01A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | SFT, Normally Black, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 350×265×24 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 48% |
| Response Time : | 44/47 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 4 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 47 pins |
| Input Voltage : | 12.0V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.48/1.60Kgs (Typ./Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 308.8×232.7 mm (H×V) |
| Outline Dimension : | 350×265 mm (H×V) |
| Outline Depth : | 23.0/24.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5,1-Φ3,1-Φ3.1,1-Φ4.5x3.1) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

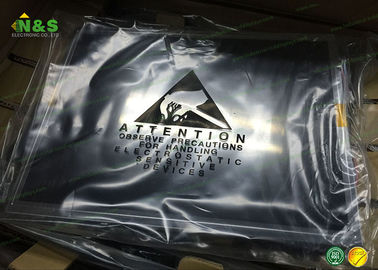

NL10276AC30-01A NEC LCD Panel Picture
