Product Details:
|
| Panel Size :: | 27.0 Inch | Resolution :: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Surface :: | Antiglare (Haze 4%), Hard Coating (2H) | Brightness :: | 300 Cd/m² (Typ.) |
| Contrast Ratio :: | 1000:1 (Typ.) | Display Colors :: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

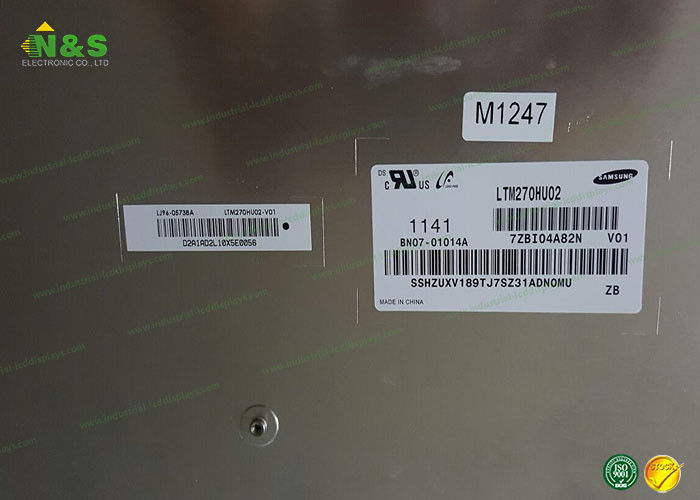

LTM270HU02 Samsung 27.0 inch LCM 1920×1080 300 Normally White
LTM270HU02 Information
| Panel Size : | 27.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10375×0.31125 mm (H×V) |
| Pixel Pitch : | 0.31125×0.31125 mm (H×V) |
| Weight : | 2.20Kgs (Max.) |
| Surface : | Antiglare (Haze 4%), Hard coating (2H) |
| Active Area : | 597.6×336.15 mm (H×V) |
| Bezel Area : | 601.4×340.0 mm (H×V) |
| Outline Dimension : | 611×370.1 mm (H×V) |
| Outline Depth : | 6.8±0.5 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
LTM270HU02 Information
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 20S6P | |||||
| Lamp Shape : | 6 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 64.0/70.0V (Typ./Max.) | |||||
| Lamp Current : | 68/70mA (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-8PINS-CCCAACCC | |
| Lamp Driver Board : | No | |||||
