Product Details:
|
| Panel Size :: | 24.0 Inch | Resolution :: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Active Area :: | 518.4×324 Mm | Surface :: | Antiglare (Haze 44%), Hard Coating (3H) |
| Display Colors :: | 16.7M (8-bit) , CIE1931 72% | Viewing Angle :: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||
LTM240M2-L02 Samsung 24.0 inch with 518.4×324 mm Active Area for Desktop Monitor
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LTM240M2-L02 Specification
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.25Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 36.3 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM240M2-L02 Specification
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | U shape | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 1780V (Typ.) | |||||
| Lamp Current : | 5.5/6.0/7.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 2360/2950V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 6 pcs | BLL-4PINS-HNNH | |
| Lamp Driver Board : | No | |||||
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk

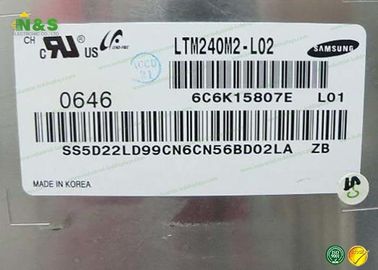

LTM240M2-L02 Picture
