Product Details:
|
| Panel Size :: | 24.0 Inch | Resolution :: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Surface :: | Antiglare (Haze 25%), Hard Coating (3H) | Viewing Angle :: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

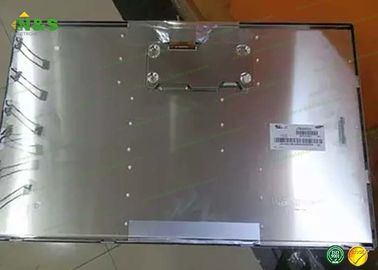

24.0 inch LTM240CT01 Samsung 1000:1 16.7MNormally White for Desktop Mionitor panel
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LTM240CT01 DETAIL
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.40Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 36.3 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LTM240CT01 DETAIL
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | U shape | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 1780V (Typ.) | |||||
| Lamp Current : | 6.0mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20015HS-04LB | 4.0 mm | 4 pins | 6 pcs | BLL-4PINS-HNNH | |
| Lamp Driver Board : | No | |||||
