Product Details:
|
| Panel Size :: | 24.0 Inch | Resolution :: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Active Area :: | 518.4×324 Mm | Surface :: | Antiglare (Haze 44%), Hard Coating (3H) |
| Brightness :: | 300 Cd/m² (Typ.) | Contrast Ratio :: | 1000:1 (Typ.) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

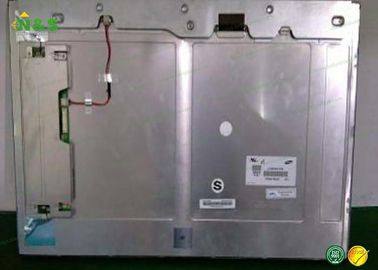

LTM240CS07 Samsung 24.0 inch 1920×1200 300 Normally Black for Dsektop Monitor
LTM240CS07 DETAIL
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.25Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 28.8/36.3 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
| AMS499QP89-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY03 | Samsung | 5.3" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTM240CS07 DETAIL
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | U shape | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 2130.0±149.0V | |||||
| Lamp Current : | 5.0/7.0mA (Min./Max.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 2760/3460V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20015HS-04LB | 4.0 mm | 4 pins | 6 pcs | BLL-4PINS-HNNH | |
| Lamp Driver Board : | No | |||||
