Product Details:
|
| Panel Size :: | 24.0 Inch | Active Area :: | 518.4×324 Mm |
|---|---|---|---|
| Outline :: | 546.4×352 Mm | Signal Interface :: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

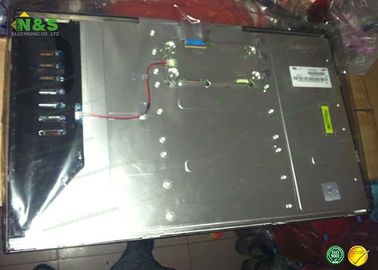

LTM240CS06 Samsung 24.0 inch Normally Black 1920×1200 400 for Desktop Monitor
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
LTM240CS06 Specification
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.25Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 36.3 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
LTM240CS06 Specification
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | U shape | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 1780V (Typ.) | |||||
| Lamp Current : | 6.0mA (Typ.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 2360/2950V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20015HS-04LB | 4.0 mm | 4 pins | 6 pcs | BLL-4PINS-HNNH | |
| Lamp Driver Board : | No | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS01 | Samsung | 4.7" | 720×1280 |
| AMS529HA01 | Samsung | 5.3" | 800×1280 |
| AMS397GE02 | Samsung | 4.0" | 480×800 |
| AMS427GL03 | Samsung | 4.3" | 480×800 |
| AMS395GB01 | Samsung | 4.0" | 360×640 |
| AMS395GB02 | Samsung | 4.0" | 360×640 |
| AMS353FD09-0 | Samsung | 3.5" | 480×800 |
| AMS369FG06-0 | Samsung | 3.7" | 480×800 |
| LSC550FN19-W | Samsung | 55" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
