Product Details:
|
| Panel Size :: | 23.0 Inch | Active Area :: | 509.76×286.74 Mm |
|---|---|---|---|
| Surface :: | Antiglare (Haze 25%), Hard Coating (3H) | Contrast Ratio :: | 1000:1 (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

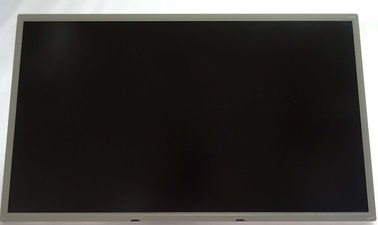

23.0 inch LTM230HT11 Samsung Normally White with 509.76×286.74 mm Active Area
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS427GL45-0 | Samsung | 4.3" | 480×800 |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |
| AMS767KC06 | Samsung | 7.7" | 1280×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTM230HT11 Information
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0885×0.2655 mm (H×V) |
| Pixel Pitch : | 0.2655×0.2655 mm (H×V) |
| Weight : | 2.10Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 509.76×286.74 mm (H×V) |
| Bezel Area : | 513.8×290.8 mm (H×V) |
| Outline Dimension : | 534×311.7 mm (H×V) |
| Outline Depth : | 7.5/10.7 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM230HT11 Information
| Lamp Position : | Edge light type (Right side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 11S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 33.6/36.9V (Typ./Max.) | |||||
| Lamp Current : | 120/130mA (Typ./Max.) | |||||
| Lamps Power Consumption : | 12.17W (Typ.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC | |
| Lamp Driver Board : | No | |||||
