Product Details:
|
| Panel Size :: | 21.5 Inch | Resolution :: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Surface :: | Antiglare (Haze 25%), Hard Coating (3H) | Isplay Colors :: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||
21.5 inch LTM215HT04 Samsung Normally White with 476.64×268.11 mm Active Area
LTM215HT04 DETAIL
| Panel Size : | 21.5 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 1.98Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 10.7 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
LTM215HT04 DETAIL
| Lamp Position : | Edge light type (Right side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 10S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 33/35V (Typ./Max.) | |||||
| Lamp Current : | 110mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : |  |
|||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC | |
| Lamp Driver Board : | No | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

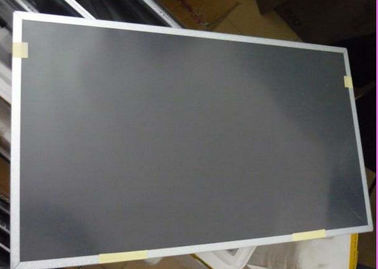

LTM215HT04 Picture
