Product Details:
|
Resolution: | 320(RGB)×234 | Panel Size: | 5.0 Inch |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 102.2×74.8 Mm |
Display Mode: | TN, Normally White, Transmissive | Response Time: | 30/50 (Typ.)(Tr/Td) |
High Light: | sharp lcd display panels,sharp lcd flat screen |
Normally White 5.0 inch LQ5AW136R Sharp LCD Panel with 102.2×74.8 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LQ5AW136R Detail
Panel Size : | 5.0 inch | |
Dot Resolution : | 320(RGB)×234 | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 79 PPI | |
Aspect Ratio : | 4:3 (H:V) | |
| Flat Rectangle Display | |
Dot Pitch : | 0.1065×0.3195 mm (H×V) | |
| 0.3195×0.3195 mm (H×V) | |
Weight : | 185g (Max.) | |
| Antiglare, Antireflection | |
Active Area : | 102.2×74.8 mm (H×V) | |
| 109.5×80.8 mm (H×V) | |
Outline Dimension : | 126.8×89.6 mm (H×V) | |
| 16.5±0.3 mm | |
Landscape or Portrait : | Landscape type | |
Display Mode : | TN, Normally White, Transmissive | |
Brightness : | 320 cd/m² (Typ.) | |
| 60 : 1 (Min.) (Transmissive) | |
Response Time : | 30/50 (Typ.)(Tr/Td) | |
Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) | |
Viewing Direction : | 6 o'clock | |
| Wx:0.313; Wy:0.329 | |
| N |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

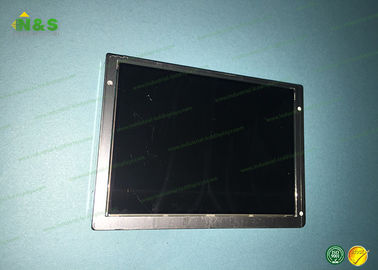

LQ5AW136R Picture
