Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 245.76×184.32 Mm | Outline: | 274.5×197.5×5.35 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ121X1LH83 Sharp LCD Panel SHARP 12.1 inch LCM 1024×768 200 300:1 262K CCFL LVDS
LQ121X1LH83 Detail
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 105 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.080×0.240 mm (H×V) | |
|
0.240×0.240 mm (H×V) | |
| Weight : | 245g (Typ.) | |
|
Antiglare, Hard coating (2H), Antireflection | |
| Active Area : | 245.76×184.32 mm (H×V) | |
|
250.8×188.4 mm (H×V) | |
| Outline Dimension : | 274.5×197.5 mm (H×V) | |
|
3.4~5.35 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
|
TN, Normally White, Transmissive | |
| Brightness : | 200 cd/m² (Typ.) | |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
|
30 (Typ.)(Tr+Td) | |
|
45/45/10/30 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
|
1.10/1.30 (Typ./Max.)(5 points) | |
| Sunlight Readable : | N |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

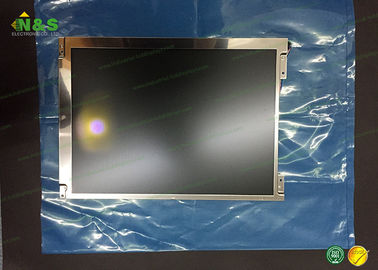

LQ121X1LH83 Picture
