Product Details:
|
Resolution: | 800(RGB)×600 , SVGA | Panel Size: | 12.1 Inch |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | ASV, Normally Black, Transmissive |
Active Area: | 246×184.5 Mm | Outline: | 276×209×11 Mm |
Surface: | Antiglare, Hard Coating (2H) | Brightness: | 250 Cd/m² (Typ.) |
Contrast Ratio: | 800:1 (Typ.) | Display Colors: | 800:1 (Typ.) |
High Light: | sharp lcd display panels,sharp lcd screen |
Normally Black LQ121S1LW01 Sharp LCD Panel 12.1 inch LCM 800×600 250 800:1 262K CCFL LVDS
LQ121S1LW01 Detail
Panel Size : | 12.1 inch | |
Dot Resolution : | 800(RGB)×600 (SVGA) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 82 PPI | |
Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
Dot Pitch : | 0.1025×0.3075 mm (H×V) | |
|
0.3075×0.3075 mm (H×V) | |
Weight : | 800g (Max.) | |
|
Antiglare, Hard coating (2H) | |
Active Area : | 246×184.5 mm (H×V) | |
|
249.0×187.5 mm (H×V) | |
Outline Dimension : | 276×209 mm (H×V) | |
|
11.0 (Max.) mm | |
Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |
Landscape or Portrait : | Landscape type | |
Touch Panel : | Without | |
|
ASV, Normally Black, Transmissive | |
Brightness : | 250 cd/m² (Typ.) | |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
Display Color : | 262K (6-bit) | |
|
13/16 (Typ.)(Tr/Td) | |
|
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | Symmetry | |
White color Chromaticity : | Wx:0.313; Wy:0.329 | |
|
1.35 (Max.)(5 points) | |
Sunlight Readable : | N |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

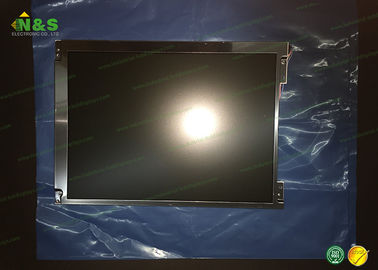

LQ121S1LW01 Picture
