Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 304.1×228.1 Mm | Outline: | 326.5×253.5×11.8 Mm |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness: | 250 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
15.0 inch LQ150X1LG45 Sharp LCD Panel with 304.1×228.1 mm Active Area
LQ150X1LG45 Product Information
| Panel Size : | 15.0 inch | ||||||||||||||||
| Dot Resolution : | 1024(RGB)×768 (XGA) | ||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||
| Pixel Density : | 85 PPI | ||||||||||||||||
| Aspect Ratio : | 4:3 (H:V) | ||||||||||||||||
|
Flat Rectangle Display | ||||||||||||||||
| Dot Pitch : | 0.099×0.297 mm (H×V) | ||||||||||||||||
|
0.297×0.297 mm (H×V) | ||||||||||||||||
| Weight : | 1.00Kgs (Max.) | ||||||||||||||||
|
Antiglare (Haze 25%), Hard coating (3H) | ||||||||||||||||
| Active Area : | 304.1×228.1 mm (H×V) | ||||||||||||||||
| Bezel Area : | 307.4×231.3 mm (H×V) | ||||||||||||||||
| Outline Dimension : | 326.5×253.5 mm (H×V) | ||||||||||||||||
|
11.2/11.8 (Typ./Max.) mm | ||||||||||||||||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | ||||||||||||||||
| Landscape or Portrait : | Landscape type | ||||||||||||||||
| Touch Panel : | Without | ||||||||||||||||
|
TN, Normally White, Transmissive | ||||||||||||||||
| Brightness : | 250 cd/m² (Typ.) | ||||||||||||||||
| Contrast Ratio : | 550 : 1 (Typ.) (Transmissive) | ||||||||||||||||
| Display Color : | 16.2M (6-bit + FRC) | ||||||||||||||||
|
2/6 (Typ.)(Tr/Td) | ||||||||||||||||
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||||||
|
6 o'clock | ||||||||||||||||
| White color Chromaticity : | Wx:0.313; Wy:0.329 | ||||||||||||||||
|
1.43 (Max.)(9 Points) | ||||||||||||||||
| Sunlight Readable : | N | ||||||||||||||||
Our Company Strength in LCD Screen Sourcing:
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |

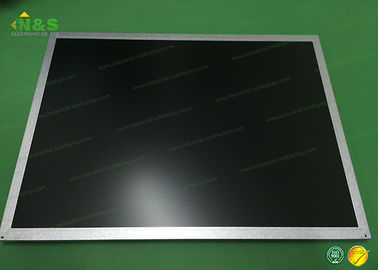

LQ150X1LG45 Picture
