Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.7 Inch |
---|---|---|---|
Resolution: | 2048(RGB)×1536 , QXGA | Display Mode: | IPS, Normally Black, Transmissive |
Active Area: | 196.608×147.456 Mm | Outline: | 208.88×167.12×5.17 Mm |
High Light: | lg lcd display,lg replacement screen |
LP097QX1-SPA1 LG LCD Pane 9.7 inch LCM 2048×1536 440 800:1 16.7M WLED eDP
LP097QX1-SPA1 Detail
Panel Size : | 9.7 inch |
---|---|
Dot Resolution : | 2048(RGB)×1536 (QXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 264 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.032×0.096 mm (H×V) |
Pixel Pitch : | 0.096×0.096 mm (H×V) |
Weight : | 134g (Max.) |
Surface : | Glare (Haze 0%), Hard coating (3H), Antireflection |
Active Area : | 196.608×147.456 mm (H×V) |
Outline Dimension : | 208.88×167.12 mm (H×V) |
Outline Depth : | 2.68/5.17 (Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Display Mode : | IPS, Normally Black, Transmissive |
---|---|
Brightness : | 440 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Response Time : | 16 (Typ.)(G to G) |
Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | Symmetry |
White color Chromaticity : | Wx:0.306; Wy:0.320 |
White Variation : | 1.25/1.43 (Typ./Max.)(160 points) |
Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
LH430M02-SH01 | LG Display | 4.3" | 540×960 |
LH350H05-SH03 | LG Display | 3.5" | 320×480 |
LH320H04-SH01 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

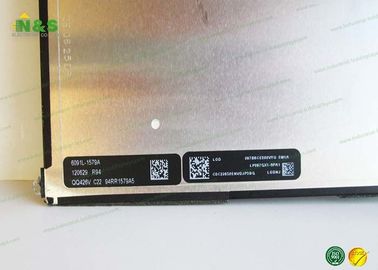

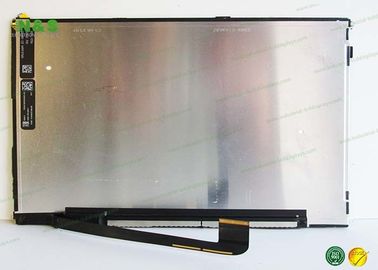

LP097QX1-SPA1 Picture
