Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 27.0 Inch |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440 , Quad-HD | Display Mode: | H-IPS, Normally Black, Transmissive |
| Active Area: | 596.736×335.664 Mm | Outline: | 630×376.13×22.3 Mm |
| Highlight: | lg display panel,lg lcd display |
||
LM270WQ1-SDA2 27.0 inch LG LCD Pane with 596.736×335.664 mm for Desktop Monitor panel
LM270WQ1-SDA2 Detail
| Panel Size : | 27.0 inch |
|---|---|
| Dot Resolution : | 2560(RGB)×1440 (Quad-HD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 108 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0777×0.2331 mm (H×V) |
| Pixel Pitch : | 0.2331×0.2331 mm (H×V) |
| Weight : | 4.60Kgs (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 596.736×335.664 mm (H×V) |
| Bezel Area : | 601.7×340.7 mm (H×V) |
| Outline Dimension : | 630×376.13 mm (H×V) |
| Outline Depth : | 16.26/22.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (12-M3) on left, right, up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | H-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 380 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | sRGB |
| Response Time : | 6.5/7.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
| LH300WQ5-SH02 | LG Display | 3.0" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

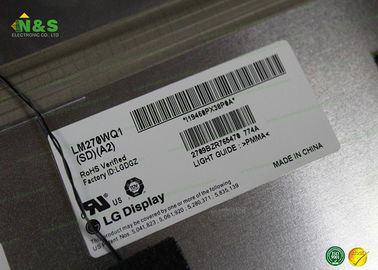

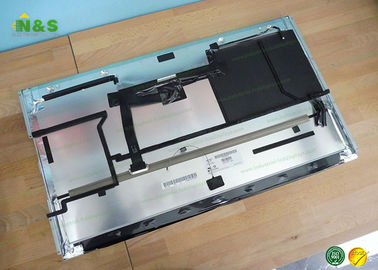

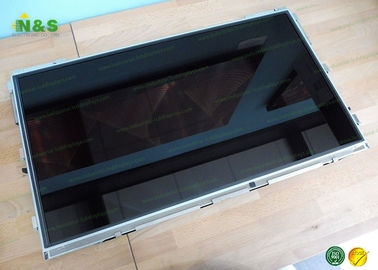

LM270WQ1-SDA2 Picture
