Product Details:
|
| Resolution: | 1280(RGB)×1024 , SXGA | Panel Size: | 16.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 317.8×254.2 Mm |
| Outline: | 357×282 Mm | Surface: | Antiglare (Haze 28%), Hard Coating (2H) |
| Display Colors: | 16.2M (6-bit + FRC) | Lamp Type: | CCFL |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Normally White LQ160E1LG01 Sharp LCD Panel 16.0 inch LCM 1280×1024 16.2M CCFL LVDS
LQ160E1LG01 Specification
| Panel Size : | 16.0 inch | ||||||||||||||||||
| Dot Resolution : | 1280(RGB)×1024 (SXGA) | ||||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||||
| Pixel Density : | 102 PPI | ||||||||||||||||||
| Aspect Ratio : | 5:4 (H:V) | ||||||||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||||||||
| Dot Pitch : | 0.083×0.248 mm (H×V) | ||||||||||||||||||
| Pixel Pitch : | 0.248×0.248 mm (H×V) | ||||||||||||||||||
| Weight : | 1.70±0.07Kgs | ||||||||||||||||||
| Antiglare (Haze 28%), Hard coating (2H) | ||||||||||||||||||
| Active Area : | 317.8×254.2 mm (H×V) | ||||||||||||||||||
| 357×282 mm (H×V) | ||||||||||||||||||
| Outline Depth : | 20.5 mm | ||||||||||||||||||
| Landscape type | ||||||||||||||||||
| Touch Panel : | Without | ||||||||||||||||||
| Display Mode : | TN, Normally White, Transmissive | ||||||||||||||||||
| Display Color : | 16.2M (6-bit + FRC) | ||||||||||||||||||
| N | ||||||||||||||||||
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

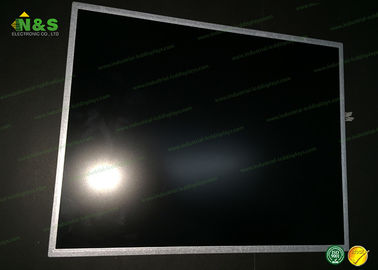

LQ160E1LG01 Picture
