Product Details:
|
| Resolution: | 540(RGB)×960 , QHD | Panel Size: | 4.3 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Outline: | 58.54×105.7×2.6 Mm |
| Active Area: | 53.46×95.04 Mm | Surface: | Hard Coating (3H) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LS043T1LE01 Sharp LCD Panel 4.3 inch LCM 540×960 450 800:1 16.7M WLED MDDI/MIPI
LS043T1LE01 Specification
| Panel Size : | 4.3 inch | |||||||||||||||||
| Dot Resolution : | 540(RGB)×960 (qHD) | |||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||||||||
| Pixel Density : | 256 PPI | |||||||||||||||||
| Aspect Ratio : | 9:16 (H:V) | |||||||||||||||||
| Form Factor : | Flat Rectangle Display | |||||||||||||||||
| Dot Pitch : | 0.033×0.099 mm (H×V) | |||||||||||||||||
| Pixel Pitch : | 0.099×0.099 mm (H×V) | |||||||||||||||||
| Weight : | 33g | |||||||||||||||||
|
Hard coating (3H) | |||||||||||||||||
| Active Area : | 53.46×95.04 mm (H×V) | |||||||||||||||||
| Outline Dimension : | 58.54×105.7 mm (H×V) | |||||||||||||||||
| Outline Depth : | 2.48±0.12 mm | |||||||||||||||||
|
Portrait type | |||||||||||||||||
| Touch Panel : | Without | |||||||||||||||||
| Display Mode : | ASV, Normally Black, Transmissive | |||||||||||||||||
| Brightness : | 450 cd/m² (Typ.) | |||||||||||||||||
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |||||||||||||||||
| Display Color : | 16.7M (8-bit) | |||||||||||||||||
| Color Gamut : | 70% NTSC (CIE1931) | |||||||||||||||||
| Response Time : | 35 (Typ.)(Tr+Td) | |||||||||||||||||
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |||||||||||||||||
| Viewing Direction : | Symmetry | |||||||||||||||||
|
Wx:0.310; Wy:0.320 | |||||||||||||||||
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |||||||||||||||||
|
||||||||||||||||||
| Sunlight Readable : | N | |||||||||||||||||
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

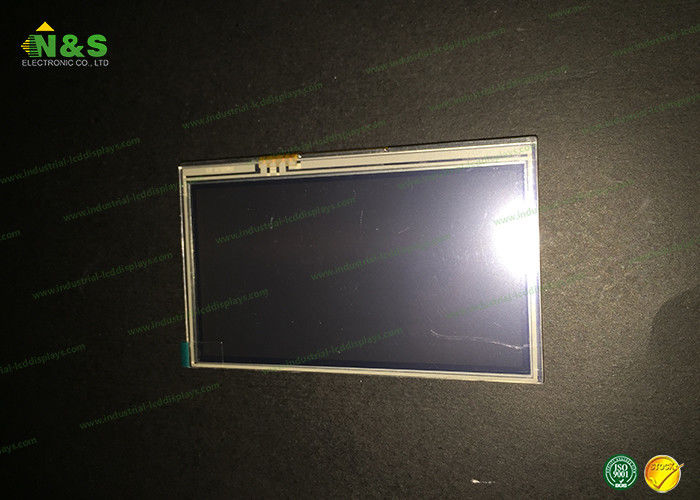

LS043T1LE01 Picture
