Product Details:
|
| Resolution: | 480(RGB)×800 , WVGA | Panel Size: | 3.8 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Active Area: | 49.32×82.2 Mm |
| Outline: | 53.75×92.49 Mm | Brightness: | 470 Cd/m² (Typ.) |
| Contrast Ratio: | 650:1 (Typ.)(Transmissive) | Display Colors: | 16.7M (8-bit) , CIE1931 90% |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LS038Y3LX01 CG-Silicon Sharp LCD Panel 3.8 inch 49.32×82.2 mm Active Area
LS038Y3LX01 Detail
| Panel Size : | 3.8 inch | |
| Dot Resolution : | 480(RGB)×800 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 247 PPI | |
| Aspect Ratio : | 3:5 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.03425×0.10275 mm (H×V) | |
| Pixel Pitch : | 0.10275×0.10275 mm (H×V) | |
| Weight : | 24g (Typ.) | |
|
49.32×82.2 mm (H×V) | |
| Bezel Area : | 50.32×83.2 mm (H×V) | |
| Outline Dimension : | 53.75×92.49 mm (H×V) | |
| Outline Depth : | 2.0 mm | |
| Landscape or Portrait : | Portrait type | |
| Touch Panel : | Without | |
|
Normally Black, Transflective | |
| Brightness : | 470 cd/m² (Typ.) | |
| Contrast Ratio : | 650 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 90% NTSC (CIE1931) | |
| Response Time : | 11/24 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.300; Wy:0.320 | |
|
1.29 (Max.)(9 points) | |
| Sunlight Readable : | Y |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" |
3840×2160 |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

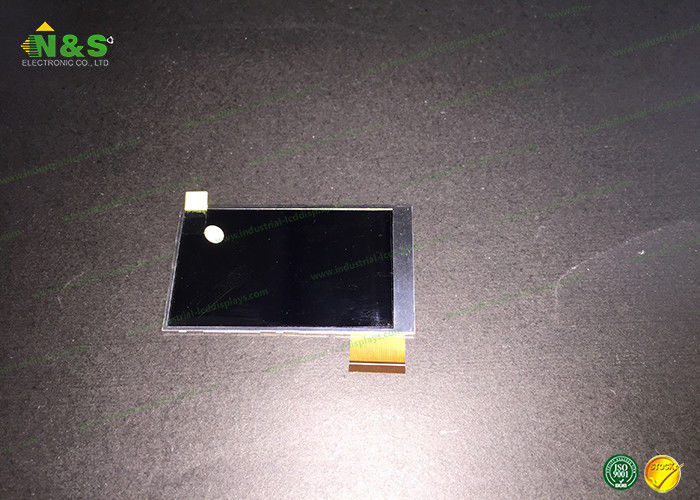

LS038Y3LX01 Picture
