Product Details:
|
| Resolution: | 1920(RGB)×1200 , WUXGA | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 365.76×228.6 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
17.0 inch LQ170M1LW2A Sharp LCD Panel with 365.76×228.6 mm Active Area
LQ170M1LW2A Detail
| Panel Size : | 17.0 inch | ||||||||||||||||
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) | ||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||
| Pixel Density : | 133 PPI | ||||||||||||||||
| Aspect Ratio : | 16:10 (H:V) | ||||||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||||||
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | ||||||||||||||||
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | ||||||||||||||||
|
730/750g (Typ./Max.) | ||||||||||||||||
| Surface : | Antiglare, Hard coating (5H), Antireflection | ||||||||||||||||
|
365.76×228.6 mm (H×V) | ||||||||||||||||
| Bezel Area : | 371.8×232.0 mm (H×V) | ||||||||||||||||
| Outline Dimension : | 382.2×266.8 mm (H×V) | ||||||||||||||||
|
7.0 (Max.) mm | ||||||||||||||||
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) | ||||||||||||||||
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel; Face mounting holes (2 pcs) on up slugs | ||||||||||||||||
|
Landscape type | ||||||||||||||||
| Touch Panel : | Without | ||||||||||||||||
| Display Mode : | TN, Normally White, Transmissive | ||||||||||||||||
| Brightness : | 230 cd/m² (Typ.) | ||||||||||||||||
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | ||||||||||||||||
| Display Color : | 262K (6-bit) | ||||||||||||||||
| Response Time : | 30 (Typ.)(Tr+Td | ||||||||||||||||
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||||||
|
6 o'clock | ||||||||||||||||
| White color Chromaticity : | Wx:0.313; Wy:0.329 | ||||||||||||||||
| White Variation : | 1.11/1.33 (Typ./Max.)(5 points) | ||||||||||||||||
|
N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |

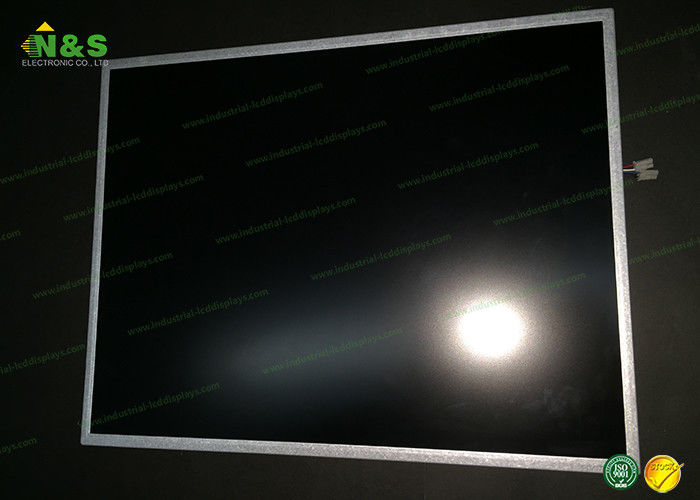

LQ170M1LW2A Picture
