Product Details:
|
| Panel Size: | 5.7 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| Highlight: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 5.7 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 141 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.060×0.180 mm (H×V) | |
| Pixel Pitch : | 0.180×0.180 mm (H×V) | |
| Weight : |
| |
| Surface : | Clear | |
| Active Area : | 115.2×86.4 mm (H×V) | |
| Bezel Area : | 118.16×89.12 mm (H×V) | |
| Outline Dimension : | 129×98 mm (H×V) | |
| Outline Depth : | 5.8/8.9 (Typ./Max.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 900 cd/m² (Typ.) | |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 48% NTSC (CIE1931) | |
| Response Time : | 15/35 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/60/40 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
| |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | Y |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

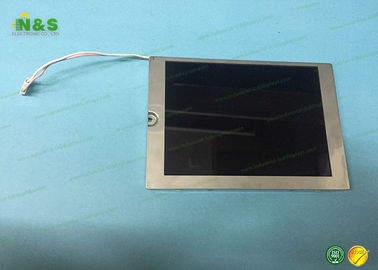

FG050722DSSWDGL2 Picture
