Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.6inch |
|---|---|---|---|
| Resolution: | 272(RGB)×480 , WQVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 44.472×78.48 Mm | Outline: | 51.8×90 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Hard coating LQ036T1DG01C SHARP LCD Panel 3.6 inch with 44.472×78.48 mm
LQ036T1DG01C Specification
| Panel Size : | 3.6 inch |
|---|---|
| Dot Resolution : | 272(RGB)×480 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 155 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0545×0.1635 mm (H×V) |
| Pixel Pitch : | 0.1635×0.1635 mm (H×V) |
| Weight : | 35g |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 44.472×78.48 mm (H×V) |
| Outline Dimension : | 51.8×90 mm (H×V) |
| Outline Depth : | 3.3 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 410 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.320; Wy:0.350 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

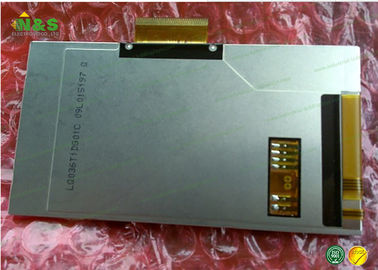

LQ036T1DG01C Picture
