Product Details:
|
| Panel Size: | 7.2 Inch | Resolution: | 640×480 , VGA |
|---|---|---|---|
| Display Mode: | STN, Black/White (Negative), Transmissive | Contrast Ratio: | 18:1 (Typ.) |
| Frequency: | 60Hz | Signal Interface: | Parallel Data (4-bit) , 15 Pins |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Our Advantages
| Panel Size : | 7.2 inch |
| Dot Resolution : | 640×480 (VGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 110 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.23×0.23 mm (H×V) |
| Pixel Pitch : | 0.23×0.23 mm (H×V) |
| Weight : | 260g (Typ.) |
| Active Area : | 147.18×110.38 mm (H×V) |
| Bezel Area : | 153.0×115.4 mm (H×V) |
| Outline Dimension : | 200.5×141 mm (H×V) |
| Outline Depth : | 7.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
|
|
||
| Brightness : | 70 cd/m² (Typ.) | ||
| Contrast Ratio : | 18 : 1 (Typ.) (Transmissive) | ||
| Display Color : | Monochrome () | ||
| Response Time : | 200/150 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 25/25/20/10 (Typ.)(CR≥4) (L/R/U/D) | ||
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

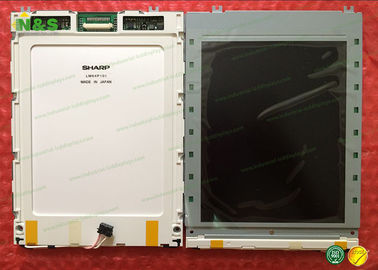

LM64P101 Picture
