Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 3.0 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×400 , WQVGA | Display Mode: | Normally Black, Transmissive |
| Active Area: | 38.88×64.8 Mm | Outline: | 43.08×75.4 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LS030B3UW01 Sharp LCD Panel 3.0 inch with 38.88×64.8 mm Active Area
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
LS030B3UW01 Product Information
| Panel Size : | 3.0 inch |
| Dot Resolution : | 240(RGB)×400 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 156 PPI |
| Aspect Ratio : | 3:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.054×0.162 mm (H×V) |
| Pixel Pitch : | 0.162×0.162 mm (H×V) |
| Weight : | 11.0g |
| Active Area : | 38.88×64.8 mm (H×V) |
| Bezel Area : | 39.88×65.8 mm (H×V) |
| Outline Dimension : | 43.08×75.4 mm (H×V) |
| Outline Depth : | 1.8 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | Normally Black, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 2000 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 11/24 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.290; Wy:0.320 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

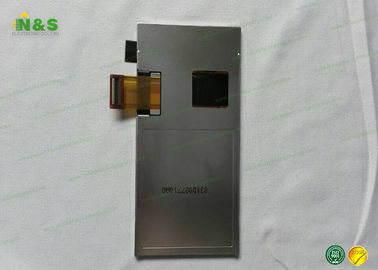

LS030B3UW01 Picture
