Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 2.4 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×240 | Display Mode: | Mobile ASV, Normally Black, Transflective |
| Active Area: | 43.56×43.56 Mm | Display Colors: | 65K |
| Response Time: | 35 (Typ.)(Tr+Td) | Viewing Angle: | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
2.4 inch LS024B7DW52 Sharp LCD Panel with 43.56×43.56 mm
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
LS024B7DW52 Product Information
| Panel Size : | 2.4 inch |
| Dot Resolution : | 240(RGB)×240 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 139 PPI |
| Aspect Ratio : | 1:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0605×0.1815 mm (H×V) |
| Pixel Pitch : | 0.1815×0.1815 mm (H×V) |
| Active Area : | 43.56×43.56 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | Mobile ASV, Normally Black, Transflective |
| Display Color : | 65K () |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| Sunlight Readable : | Y |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

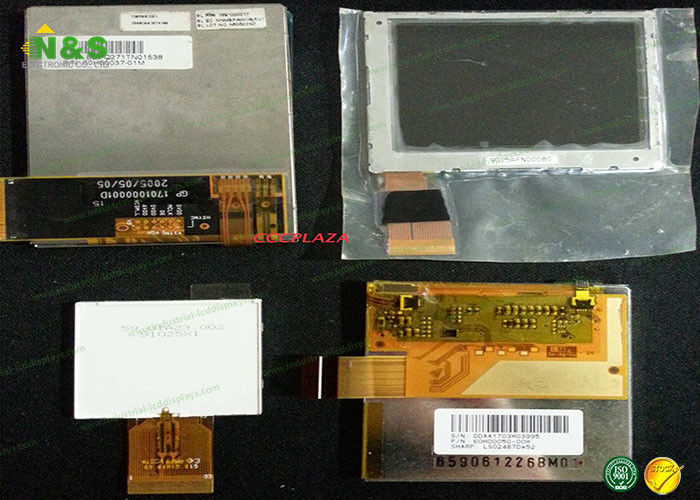

LS024B7DW52 Picture
