Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 155.52×87.75 Mm | Outline: | 173×106 Mm |
| Surface: | Antiglare, Antireflection | Brightness: | 300 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
155.52×87.75 mm LQ7BW566 Sharp LCD Panel 7.0 inch Normally White
LQ7BW566 Product Information
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 75 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.108×0.375 mm (H×V) |
| Pixel Pitch : | 0.324×0.375 mm (H×V) |
| Weight : | 320±20g |
| Surface : | Antiglare, Antireflection |
| Active Area : | 155.52×87.75 mm (H×V) |
| Outline Dimension : | 173×106 mm (H×V) |
| Outline Depth : | 14.7 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Min.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N< |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

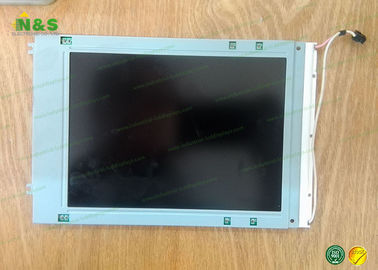

LQ7BW566 Picture
