4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating

4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating
4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating

Large Image :  4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating

Product Details:
Place of Origin: KOREA
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS480KC03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 500PCS/DAY

4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating

Description
Active Area: 104.4×62.64 Mm Outline: 112×75 Mm
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) Panel Size :: 4.8 Inch
High Light:

samsung lcd screen

,

samsung lcd display panel

Samsung LCD Panel Normally Black LMS480KC03 4.8 inch for MID UMPC panel



Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.



Product Information:

Panel Size : 4.8 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 194 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0435×0.1305 mm (H×V)
Pixel Pitch : 0.1305×0.1305 mm (H×V)
Weight : 66.1/72.0Kgs (Typ./Max.)
Active Area : 104.4×62.64 mm (H×V)
Outline Dimension : 112×75 mm (H×V)
Outline Depth : 3.8±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



Display Mode : PVA, Normally Black, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.316; Wy:0.349
White Variation : 1.17/1.33 (Typ./Max.)(9 points)
Sunlight Readable : N

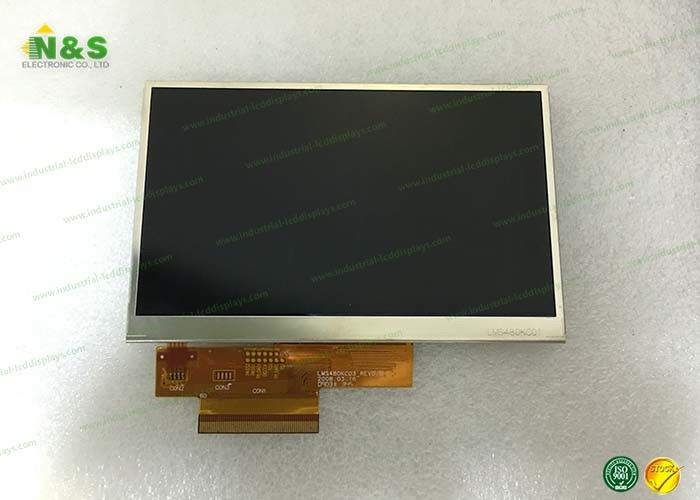

Picture of  LMS480KC03



4.8 Inch MID UMPC Samsung LCD Panel LMS480KC03 Antiglare , Hard coating 0
