Product Details:
|
| Active Area: | 95.04×53.856 Mm | Outline: | 105.5×67.2 Mm |
|---|---|---|---|
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | Panel Size :: | 4.3 Inch |
| High Light: | samsung lcd screen,samsung lcd display panel |
||
LMS430HF03 4.3 inch Samsung LCD Panel Normally Black for Pocket TV panel
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Product Information:
| Panel Size : | 4.3 inch |
|---|---|
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 63/68g (Typ./Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 3.95±0.2 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | PVA, Normally Black, TMR |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 17/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.320; Wy:0.340 |
| White Variation : | 1.25/1.43 (Max.)(9 points) |
| Sunlight Readable : | Y |

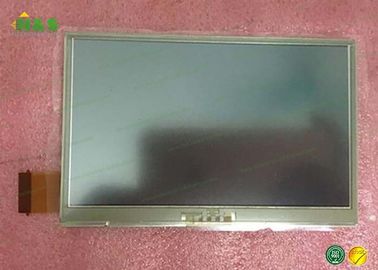

LMS430HF03 Picture
