Product Details:
|
| Panel Size: | 156 Inch | Active Area: | 344.232×193.536 Mm |
|---|---|---|---|
| Outline: | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) | Viewing Angle: | 65/65/45/55 (Typ.)(CR≥10) (L/R/U/D |
| High Light: | lg lcd display,lg replacement screen |
||
Landscape type LM156WH1-TLE1 15.6 inch LG LCD Panel with 344.232×193.536 mm Active Area
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Product Information:
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
Weight : |
0.95/1.0Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 347.5×196.8 mm (H×V) |
| Outline Dimension : | 363.8×215.9 mm (H×V) |
| Outline Depth : | 8.3/12.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : |
TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 650 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : |
1.50 (Max.)(9 points) |
| Sunlight Readable : | N |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

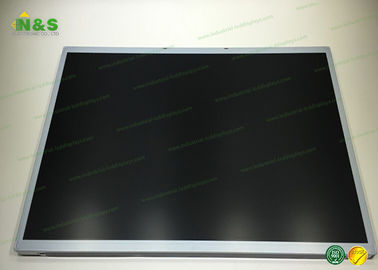

LM156WH1-TLE1 Picture
