Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | Transflective |
| Active Area: | 143.4×79.326 Mm | Outline: | 0 |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

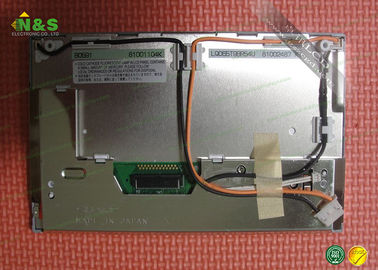

LQ065T9BR54U Sharp LCD Panel SHARP 6.5 inch with 143.4×79.326 mm Active Area
LQ065T9BR54U Information
| Panel Size : | 6.5 inch |
| Dot Resolution : | 400(RGB)×240 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 72 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) |
| Active Area : | 143.4×79.326 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Display Mode : | Transflective |
| Display Color : | Full color () |
| Sunlight Readable : | Y |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
| LM320195 | SHARP | 5.7" | 320×240 |
