Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | PLS, Normally Black, Transmissive |
| Active Area: | 234.72×132.03 Mm | Outline: | 246.52×149.02×5.2 Mm |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

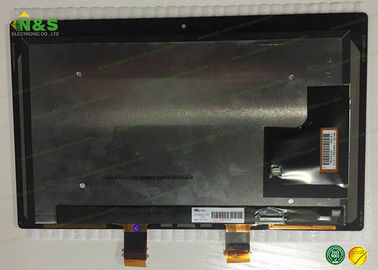

Normally Black LTL106HL01-001 Samsung LCD Panell Samsung 10.6 inch
LTL106HL01-001 Specification
| Panel Size : | 10.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 207 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04075×0.12225 mm (H×V) |
| Pixel Pitch : | 0.12225×0.12225 mm (H×V) |
| Weight : | 193g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 234.72×132.03 mm (H×V) |
| Bezel Area : | 238.59×135.73 mm (H×V) |
| Outline Dimension : | 246.52×149.02 mm (H×V) |
| Outline Depth : | 2.74/5.2 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Electromagnetic Digitizer) |
| Display Mode : | PLS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(13 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS427GL45-0 | Samsung | 4.3" | 480×800 |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
