Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 156.4×82.08 Mm | Outline: | 171.6×93.2×14.35 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

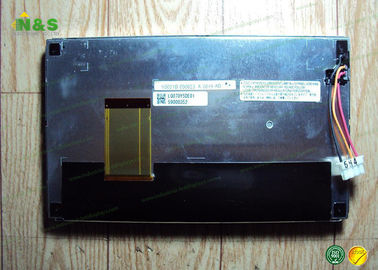

Normally White LQ070Y5DE01 Sharp LCD Panel SHARP 7.0 inch for Automotive Display panel
LQ070Y5DE01 Specification
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.065×0.1725 mm (H×V) |
| Pixel Pitch : | 0.195×0.1725 mm (H×V) |
| Weight : | 280g (Max.) |
| Active Area : | 156×82.8 mm (H×V) |
| Bezel Area : | 157.7×84.27 mm (H×V) |
| Outline Dimension : | 171.6×93.2 mm (H×V) |
| Outline Depth : | 11.25/14.35 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.315; Wy:0.345 |
| Sunlight Readable : | N |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
| LM32019P5R | SHARP | 5.7" | 320×240 |
| LM32004 | SHARP | 5.7" | 320×240 |
