Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 28.1 Inch |
|---|---|---|---|
| Resolution: | 2048(RGB)×2048 | Display Mode: | Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
503.808×503.808 mm LQ281L1LW12 SHARP 28.1 inch Sharp LCD Panel LCM 2048×2048 225 450:1 16.7M CCFL LVDS
LQ281L1LW12 Detail
| Panel Size : | 28.1 inch |
| Dot Resolution : | 2048(RGB)X2048 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 1:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082X0.246 mm (HXV) |
| Pixel Pitch : | 0.246X0.246 mm (HXV) |
| Weight : | 15.0Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 503.808X503.808 mm (HV) |
| Bezel Area : | 509.0X509.0 mm (HXV) |
| Outline Dimension : | 594X594 mm (HXV) |
| Outline Depth : | 60.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-5.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | Normally Black, Transmissive |
| Brightness : | 225 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Our Company Strength in LCD Screen Sourcing:
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

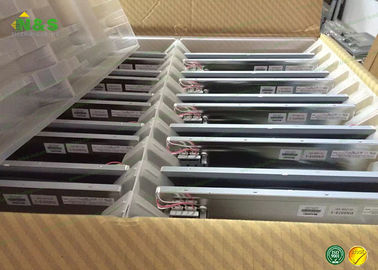

LQ281L1LW12 Picture
