Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 4.3 Inch |
|---|---|---|---|
| Resolution: | 540(RGB)×960 , QHD | Display Mode: | ASV, Normally Black, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
CG-Silicon LS043T1LX01 4.3 inch Sharp LCD Panel with 53.46×95.04 mm
LS043T1LX01 Detail
| Panel Size : | 4.3 inch | ||||||||||||
| Dot Resolution : | 540(RGB)×960 (qHD) | ||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||
| Pixel Density : | 256 PPI | ||||||||||||
| Aspect Ratio : | 9:16 (H:V) | ||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||
| Dot Pitch : | 0.033×0.099 mm (H×V) | ||||||||||||
| Pixel Pitch : | 0.099×0.099 mm (H×V) | ||||||||||||
| Weight : |
|
||||||||||||
|
|
||||||||||||
| Active Area : | 53.46×95.04 mm (H×V) | ||||||||||||
| Outline Dimension : | 58.54×105.7 mm (H×V) | ||||||||||||
| Outline Depth : | 1.5±0.1 mm | ||||||||||||
| Landscape or Portrait : | Portrait type | ||||||||||||
| Touch Panel : |
|
||||||||||||
|
|
||||||||||||
| Brightness : | 500 cd/m² (Typ.) | ||||||||||||
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | ||||||||||||
| Display Color : | 16.7M (8-bit) | ||||||||||||
| Color Gamut : | 70% NTSC (CIE1931) | ||||||||||||
| Response Time : | 35 (Max.)(Tr+Td) | ||||||||||||
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||
| Viewing Direction : | Symmetry | ||||||||||||
| White color Chromaticity : |
|
||||||||||||
| White Variation : | 1.18/1.33 (Typ./Max.)(9 points) | ||||||||||||
| Sunlight Readable : |
|
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
Our Company Strength in LCD Screen Sourcing:
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

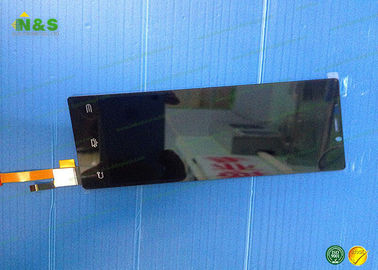

LS043T1LX01 Picture
