Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
---|---|---|---|
Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 162.24×121.68 Mm | Outline: | 183×141 Mm |
High Light: | sharp lcd display panels,sharp lcd screen |

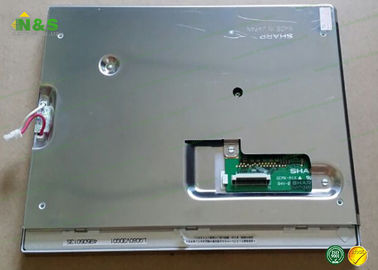

Normally White LQ080V3DG01 Sharp LCD Panel SHARP 8.0 inch LCM 640×480 for Industrial Application panel
LQ080V3DG01 Information
Panel Size : | 8.0 inch |
Dot Resolution : | 640(RGB)×480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 100 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0845×0.2535 mm (H×V) |
Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
Weight : | 390±20g |
Surface : | Antiglare, Antireflection |
Active Area : | 162.24×121.68 mm (H×V) |
Outline Dimension : | 183×141 mm (H×V) |
Outline Depth : | 14.0 (Typ.) mm |
Holes & Brackets : | Rear mounting holes (4-Ф2.2) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 380 cd/m² (Typ.) |
Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 30/50 (Typ.)(Tr/Td) |
Viewing Angle : | 65/65/65/55 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
Sunlight Readable : | N |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Our Advantages
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LM320195 | SHARP | 5.7" | 320×240 |
LM320194 | SHARP | 5.7" | 320×240 |
LM24013W | SHARP | 4.6" | 240×64 |
LM065HB1T01 | SHARP | 6.5" | 640×240 |
LM32019P5R | SHARP | 5.7" | 320×240 |
LM32004 | SHARP | 5.7" | 320×240 |
LM80C209 | SHARP | 11.3" | 800×600 |
LM057QB1T10 | SHARP | 5.7" | 320×240 |
