Product Details:
|
| Panel Brand: | NEC | Active Area: | 211.2×158.4 Mm |
|---|---|---|---|
| Outline: | 270×183×13 Mm | Panel Size: | 10.4 Inch |
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | TN, Normally White, Transmissive |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL6448AC33-10 10.4 inch NEC LCD Panel Normally White with 211.2×158.4 mm
NL6448AC33-10 Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 700g (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 220.9×166.0 mm (H×V) |
| Outline Dimension : | 270×183 mm (H×V) |
| Outline Depth : | 13.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 4096 (4-bit) |
| Color Gamut : | 55% NTSC (CIE1931) |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 45/45/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
| ED060KC1 | E Ink | 6.0" | 1072×1448 |
| ED060XC9 | E Ink | 6.0" | 758×1024 |
| ED060XD7 | E Ink | 6.0" | 758×1024 |
| ED080TC1 | E Ink | 8.0" | 1600×1200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

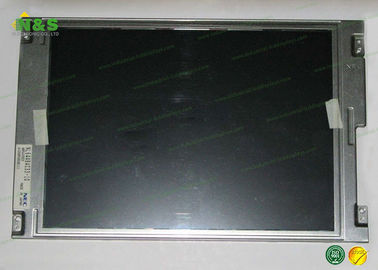

NL6448AC33-10 Picture
