Product Details:
|
| Panel Brand: | HannStar | Panel Model: | HSD080IDW1-C01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
Normally White HSD080IDW1-C01 HannStar LCD Panel with 176.64×99.36 mm
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
HSD080IDW1-C01 Product Information
| Panel Brand : | HannStar |
| Panel Model : | HSD080IDW1-C01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 193.1×117.2×6.92 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Min.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S10P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.3/9.7/15.0/-9V (VCC/AVDD/VGH/VHL) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
| HSD047BHW1-D00 | HannStar | 4.7" | 720×1280 |
| HSD047BMW1-C00 | HannStar | 4.7" | 540×960 |
| HSD045BMW3-D00 | HannStar | 4.5" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 116 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0736×0.2070 mm (H×V) |
| Pixel Pitch : | 0.2208×0.2070 mm (H×V) |
| Weight : | 215g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 180.1×103.4 mm (H×V) |
| Outline Dimension : | 193.1×117.2 mm (H×V) |
| Outline Depth : | 6.4/6.92 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

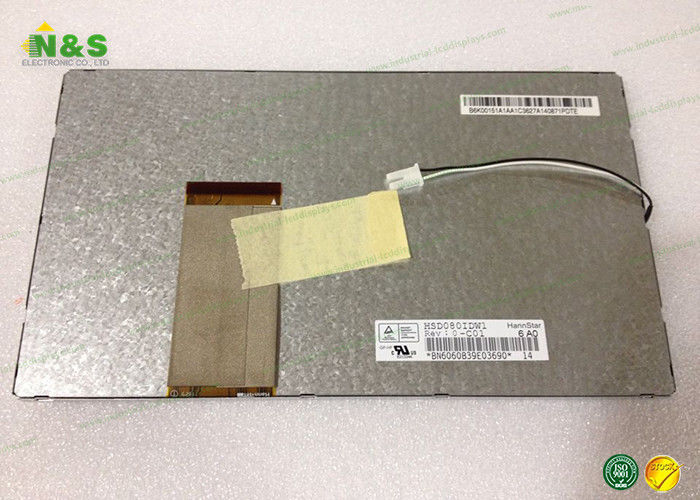

HSD080IDW1-C01 Picture
