Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ084S3LG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Hard coating LQ084S3LG01 Sharp LCD Panel 8.4 inch for Industrial Application
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
LQ084S3LG01
| Panel Brand : | SHARP | |
| Panel Model : | LQ084S3LG01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 170.4×127.8 mm | |
| Outline : | 199.5×149.5 mm | |
| Surface : | Antiglare, Hard coating | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 600:1 (Typ.) | |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Response Time : | 5/21 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/55/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins | |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 119 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.071×0.213 mm (H×V) | |
| Pixel Pitch : | 0.213×0.213 mm (H×V) | |
| Weight : | 405g (Max.) | |
| Surface : | Antiglare, Hard coating | |
| Active Area : | 170.4×127.8 mm (H×V) | |
| Bezel Area : | 175.5×133.0 mm (H×V) | |
| Outline Dimension : | 199.5×149.5 mm (H×V) | |
| Outline Depth : | 11.6 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.

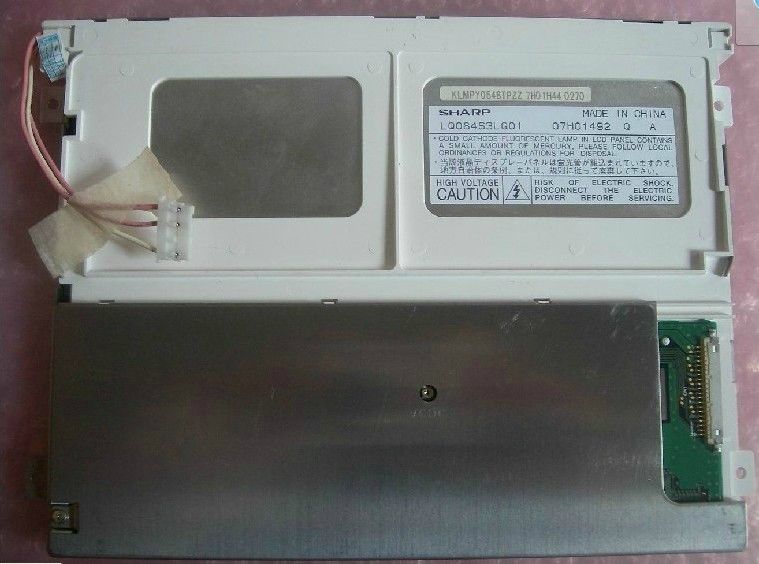

LQ084S3LG01 Picture
