Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ070Y3DG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
152.4×91.44 mm LQ070Y3DG01 7.0 inch Sharp LCD Panel for Digital Photo Frame
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
LQ070Y3DG01 Specification
| Panel Brand : | SHARP | ||
| Panel Model : |
|
||
| Panel Type : | a-Si TFT-LCD , LCM | ||
| Panel Size : | 7.0 inch | ||
|
|
||
| Display Mode : | Transmissive | ||
| Active Area : | 152.4×91.44 mm | ||
| Outline : | 175×111.5×13.8 mm | ||
| Surface : | |||
| Brightness : |
|
||
| Contrast Ratio : | 350:1 (Typ.) | ||
| Display Colors : |
|
||
| Response Time : | 10/15 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) | ||
| Frequency : | 60Hz | ||
|
1 pcs CCFL Without Driver | ||
| Signal Interface : | CMOS (1 ch, 6-bit) , 32 pins | ||
|
5.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| Panel Size : | 7.0 inch | ||
| Dot Resolution : |
|
||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 133 PPI | ||
|
|
||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | ||
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | ||
| Weight : | 340g (Typ.) | ||
| Active Area : |
|
||
| Bezel Area : | 157.2×96.35 mm (H×V) | ||
| Outline Dimension : |
|
||
| Outline Depth : | 13.5/13.8 (Typ./Max.) mm | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.2) | ||
| Landscape or Portrait : | Landscape type | ||
|
Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

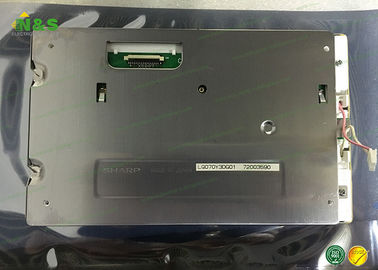

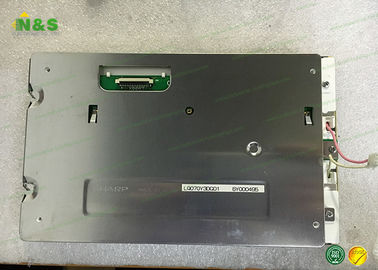

LQ070Y3DG01 Picture
