Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 16.4 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 , HD+ | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
16.4 inch LQ164D1LA4B SHARP Normally White with 363.2×204.3 mm
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
LQ164D1LA4B Detail
| Panel Size : | 16.4 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 111 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.076×0.227 mm (H×V) |
| Pixel Pitch : | 0.227×0.227 mm (H×V) |
| Weight : | 655/670g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 363.2×204.3 mm (H×V) |
| Bezel Area : | 367.2×208.8 mm (H×V) |
| Outline Dimension : | 375×222.1 mm (H×V) |
| Outline Depth : | 7.0 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 90% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.20/1.45 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

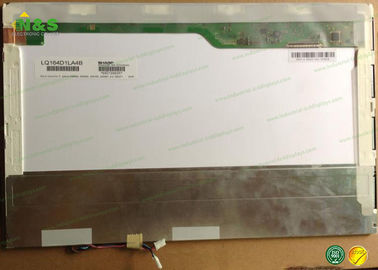

LQ164D1LA4B Picture
