Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T9DR52U |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ065T9DR52U Sharp LCD Panel 6.5 inch for Automotive Display
Our Advantages
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LQ065T9DR52U
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T9DR52U | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
| Resolution : | 400(RGB)×240 , WQVGA | |
|
TN, Normally White, Transflective | |
| Active Area : | 143.4×79.326 mm | |
| Outline : | 155×89.2 mm | |
|
Antiglare, Antireflection | |
| Brightness : | 220 cd/m² (Typ.) | |
|
60:1 (Min.)(Transmissive) 5:1 (Typ.)(Reflective) | |
| Display Colors : | 262K (6-bit) | |
|
10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 50/50/40/45 (Typ.)(CR≥5) (L/R/U/D) | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins | |
| Input Voltage : | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| Panel Size : | 6.5 inch | |
| Dot Resolution : | 400(RGB)×240 (WQVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 72 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) | |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) | |
|
205g (Max.) | |
| Surface : | Antiglare, Antireflection | |
|
143.4×79.326 mm (H×V) | |
| Outline Dimension : | 155×89.2 mm (H×V) | |
|
12.5 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |

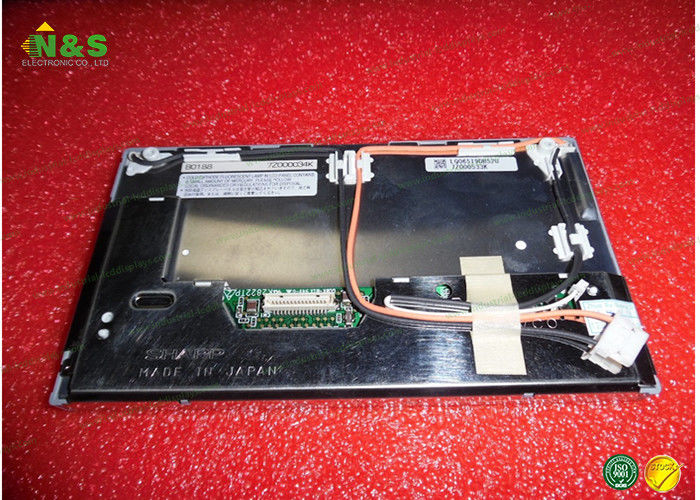

LQ065T9DR52U Picture
