Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T9BR53U |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ065T9BR53U Sharp LCD Panel 6.5 inch Transflective for Automotive Display panel
LQ065T9BR53U Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T9BR53U | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
| Resolution : | 400(RGB)×240 , WQVGA | |
|
Transflective | |
| Active Area : | 143.4×79.326 mm | |
| Surface : | ||
|
||
| Contrast Ratio : | ||
|
Full color | |
| Response Time : | ||
|
||
| Lamp Type : | CCFL | |
| Signal Interface : | Analog |
Our Company Strength in LCD Screen Sourcing:
| Panel Size : | 6.5 inch | |
| Dot Resolution : | 400(RGB)×240 (WQVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 72 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.1195×0.3305 mm (H×V) | |
| Pixel Pitch : | 0.3585×0.3305 mm (H×V) | |
|
143.4×79.326 mm (H×V) | |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

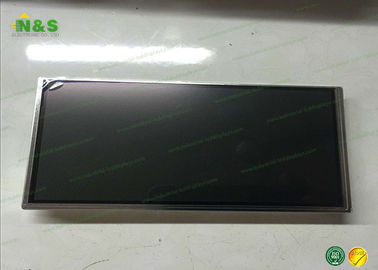

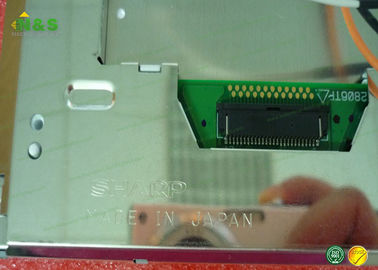

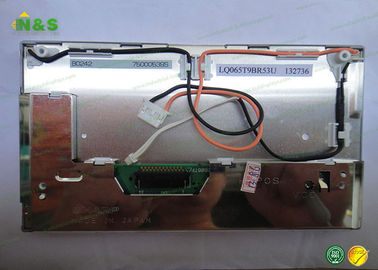

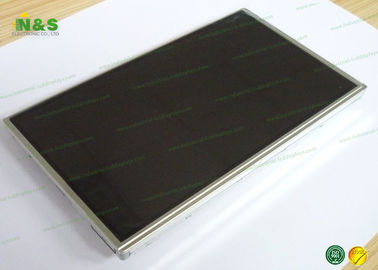

LQ065T9BR53U Picture
